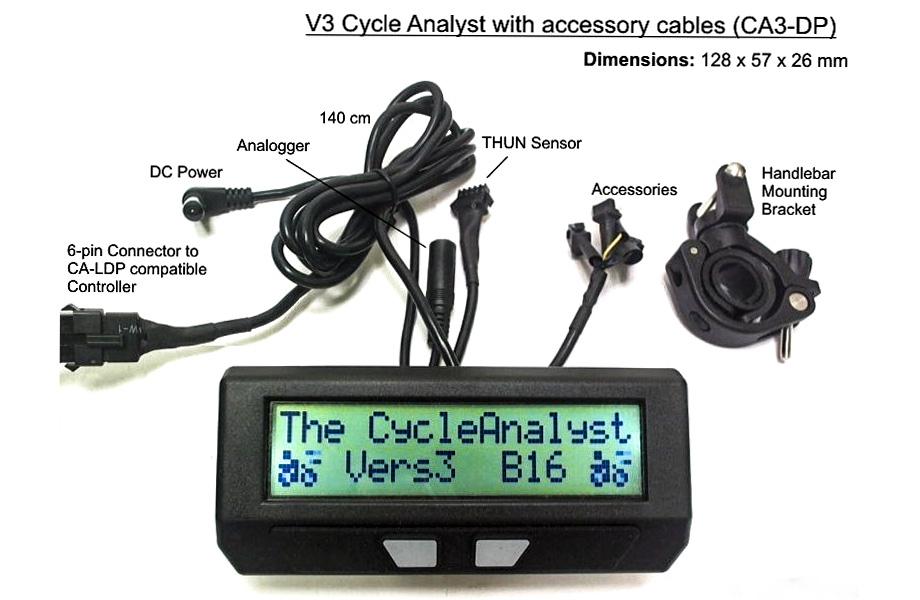

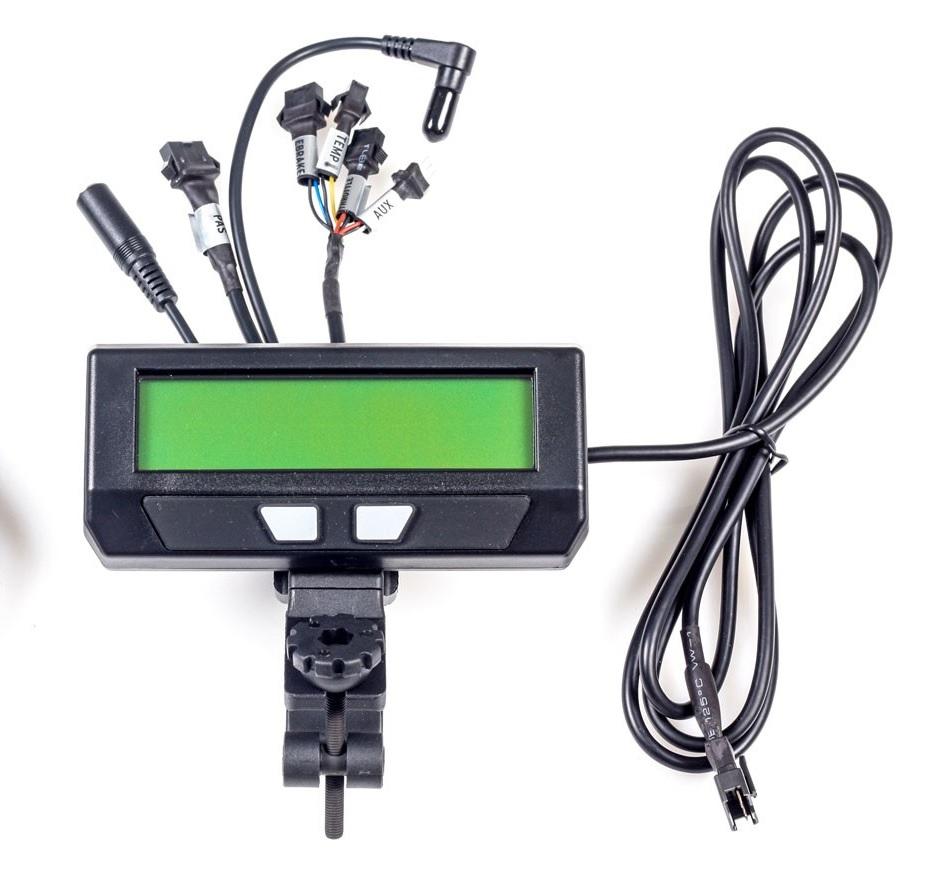

One of the most popular in the line of Grin products, the Cycle Analyst V3 DP is their latest electric bike display. Unlike most displays, the CA receives all of your electric bike signals before calculating the perfect value to send to the controller via a single standard throttle output signal.
Once connected to the vehicle's power bus, the Cycle Analyst calculates and shows the following information:
-
Thermal Rollback: A temperatures sensor input allows the V3 Cycle Analyst to scale back power as a motor heats up and prevent overheating damage.
-
PAS Sensor: The V3 Cycle Analyst can take the pedal pulse inputs of almost any ebike pedal rotation sensor to display your pedal cadence. It can use this to provide automatic power whenever you pedal (PAS mode) .
-
Torque Sensor: There is an analog input to sense a pedal torque sensor (such as the THUN bottom bracket), display your human power input, and give proportional no-throttle pedalec control.
-
Ebrakes: A digital input for ebrake sensors to plug in directly to the CA3, without needing to run another set of cables all the way down the bike to the controller.
-
Throttle Input Mapping: The CA3 can map your input throttle range to an output range suitable for the controller in order to eliminate dead-band zones at the beginning and end of the throttle motion.
-
Throttle Modes: Setup your throttle in Pass-Thru mode for conventional voltage control, or have your throttle directly regulate the battery current or motor power instead.
-
Throttle Ramps : Reduce the sensitivity and off-the-line kick of high power systems by setting ramp limits on the CA’s output throttle signal.
-
On the fly Limit Adjustments: Use a potentiometer or multi-position switch to instantly adjust any of your current/power/speed or pedal assist limits.
-
Mode Presets: Configure up to three distinct power mode presets each with their own limit settings and PAS/Throttle behaviors, and then easily switch between them with a double button press.
-
Battery SOC and LVC: Accurate State Of Charge (SOC) estimator based on your cell chemistry and voltage. Configure up to two batteries each with their own details and Low Voltage Cutoffs.
