Street Legal Electric Bike Kit - Samsung Power 2.0
Street Legal Electric Bike Kit - Samsung Power 2.0
Couldn't load pickup availability
28" / 700C / 29er rim size currently on backorder
Please select your size before purchasing that matches the information on the tyre sidewall. The wheel size is written on the tyre sidewall and not on the rim (rim diameter is not wheel size). If unsure, please feel free to contact us before placing your order.
The most popular Street Legal Conversion Kit in the world!
For general assistance, commuting, recreational riding, and outdoor leisure, the Dillenger Samsung Street Kit has it all! It's the easiest conversion kit to ride and install, with over 10,000 units sold worldwide.
Featuring all of the greatness of its predecessor with some major upgrades such as a finely incremented thumb throttle, e-brake sensors so you can use your existing brake levers, matte black Dillenger hub and spokes, and most significantly: the greatly improved, high capacity Samsung battery system.
Watch the Street Legal Kit reviewed by Electric Bike Review below.
Full Specifications
General
| Type | E-bike conversion kit |
| Intended Usage | On road, commuting, recreation, and leisure |
| Nominal Power | 250W |
| Max Speed | 32km/h (20mph), limited to 25km/h in display |
| Max Range | 100km (62 miles) |
| Average Range | 65km (40 miles) |
| Throttle Only Range | 50km (31 miles) |
| Throttle Type | Thumb throttle |
| Pedal Assist Levels | 5-9 |
| Handlebar Display | C965 LCD display |
| Rims | Double wall eyelet |
| Spokes | 13G steel |
| Wiring Type | EB-BUS waterproof cable set |
| Max Rider Weight | 120kg |

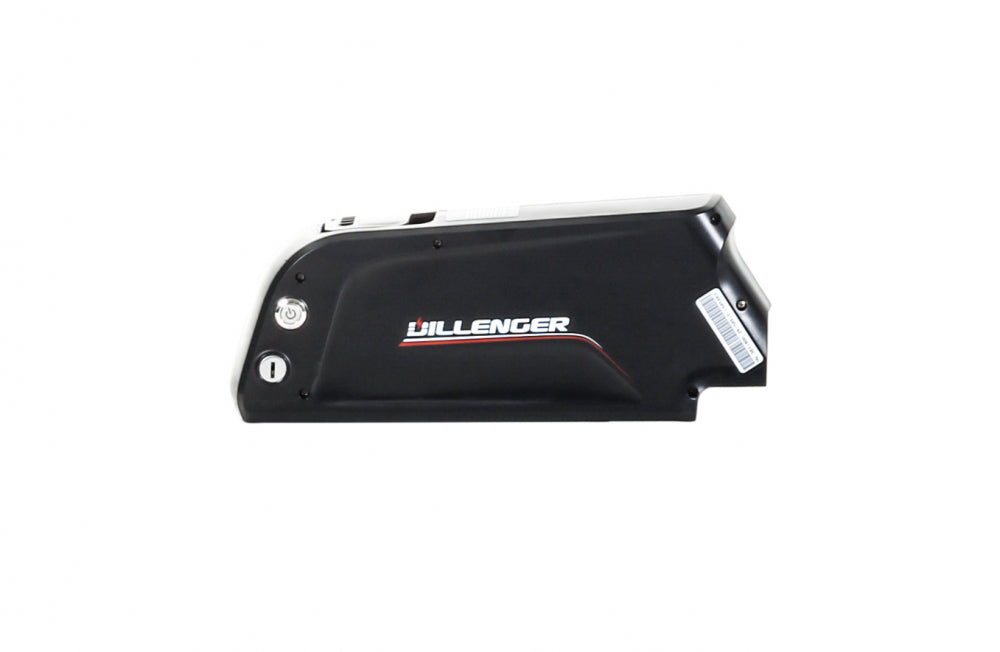

Battery
| Battery Chemistry | LiMn204 Lithium Ion |
| Nominal Battery Voltage | 36V |
| Fully Charged Voltage | 42V |
| Battery Capacity | 13Ah |
| Nominal Battery Energy | 470Wh |
| Battery Removable | With locking mechanism |
| Battery Cell Type | 18650 Samsung |
| Cell Spec | Samsung ICR18650-26F 2600mAh |
| Cell Configuration | 10S 5P |
| Cell Management | Built-in BMS |
| Other Features | 5V USB output for charging, controller/cradle included |
| Maximum Battery Charger Cycles | 1000 full cycles |
| Battery Charger Type | SANS 36V 2A Smart Charger |
| Battery Charge Time | 6.5 hours from empty |
Motor
| Motor Brand | Shengyi OEM / Dillenger |
| Motor Model | DGW07 |
| Motor Voltage | 36V |
| Max Motor Power | 250W |
| Drive Type | Geared hub drive |
| Motor Sensors | Hall Sensor |
Controller
| Controller Brand | KT sign wave with stealth cradle mount |
| Controller Operating Voltage | 36V |
| Controller Max Voltage | 50V |
| Controller Low Voltage Cutoff | 30V |
| Controller Operating Amps | 7-15A |
| Controller Nominal Power Output | 250W-350W |
| Controller MOSFET Tubes | 6 |
| Controller Sensors | Hall sensor |
Weight
| Total Weight - No Battery | 4.5kg (9.9lbs) |
| Battery Weight | 3.2kg (7.1lbs) |
| Total Weight | 7.7kg (17lbs) |
Dimensions
| Battery Width | 82mm (3.2") |
| Battery Length | 360mm (14.1") including cradle, 315mm (12.4") without |
| Battery Height | 125mm (4.9") |

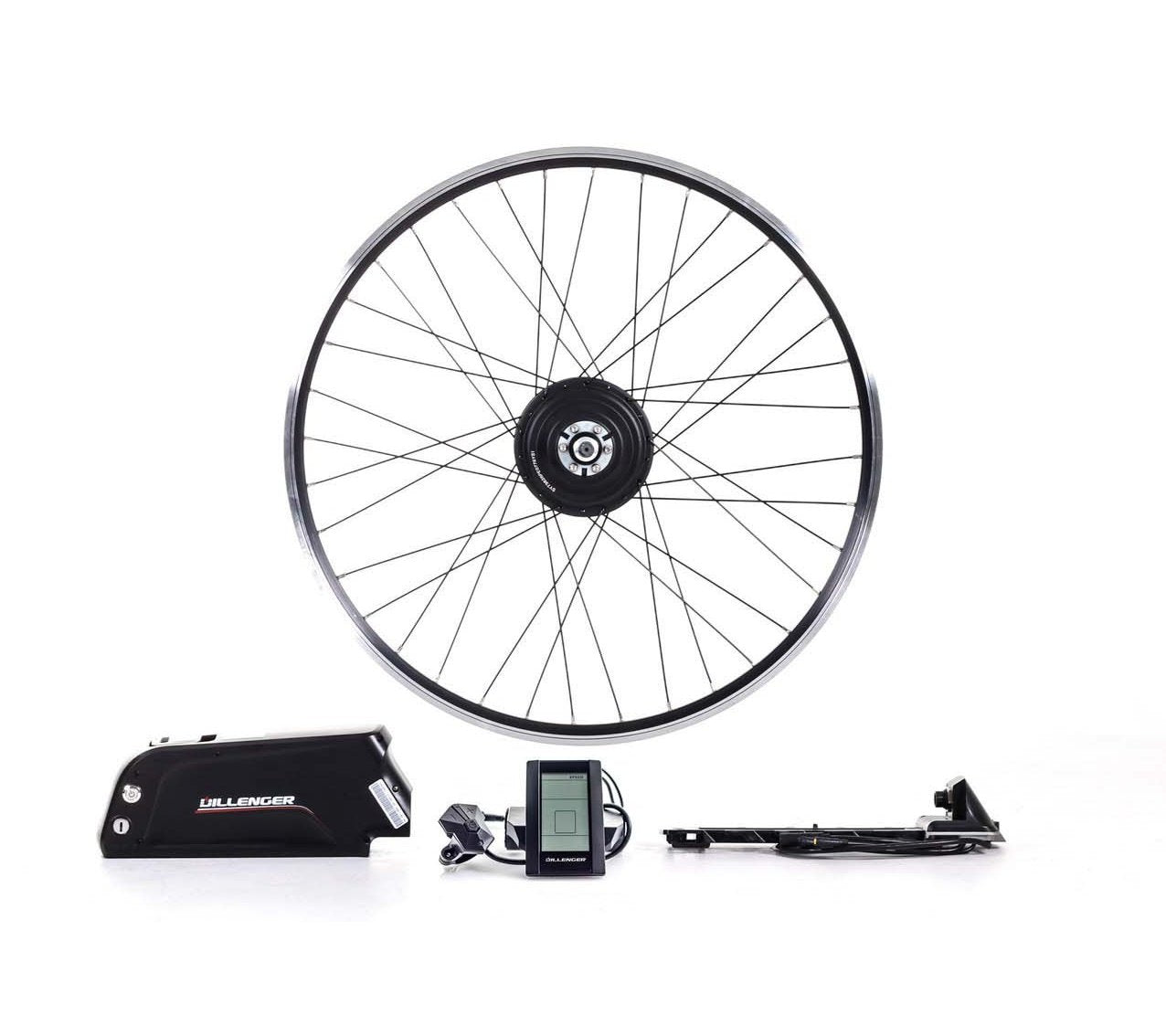

In The Box
- Motorwheel
- Battery

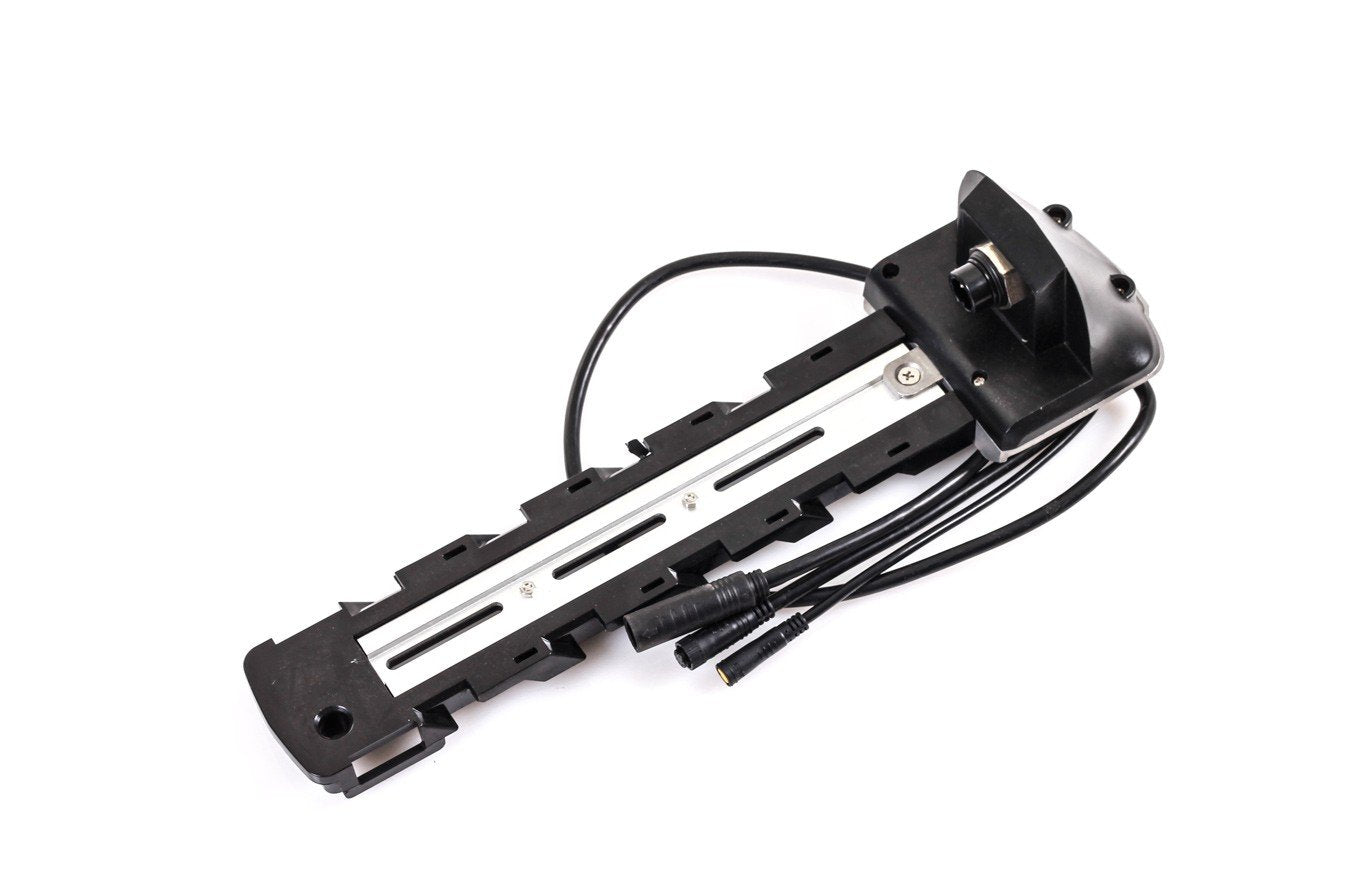

- Controller / Battery Cradle
- Battery Charger

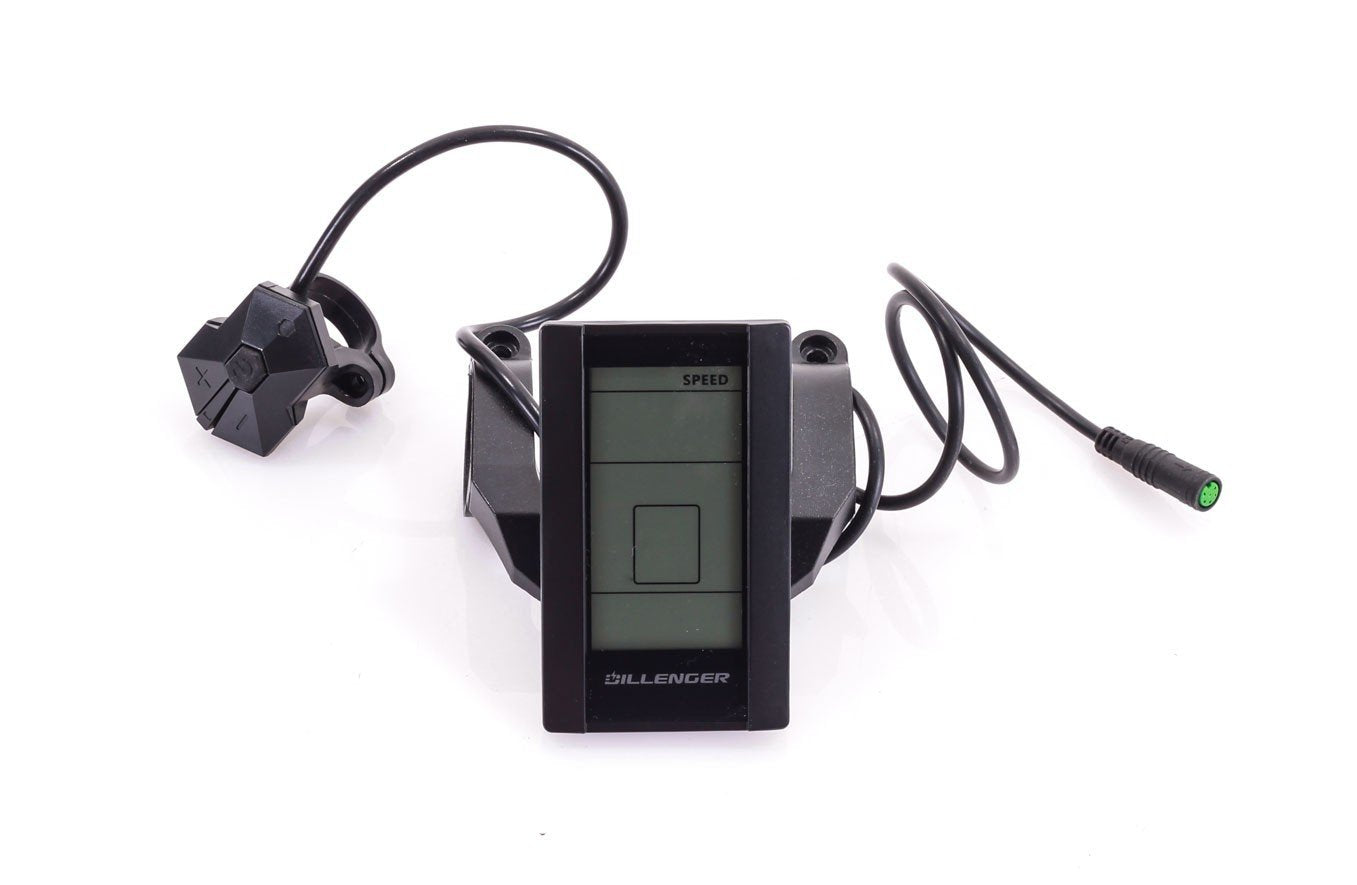

- LCD Handlebar Display with control panel

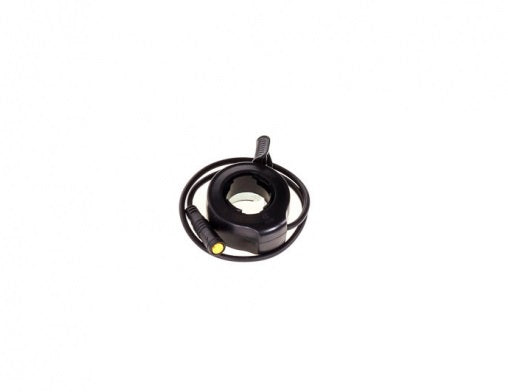

- Thumb Throttle

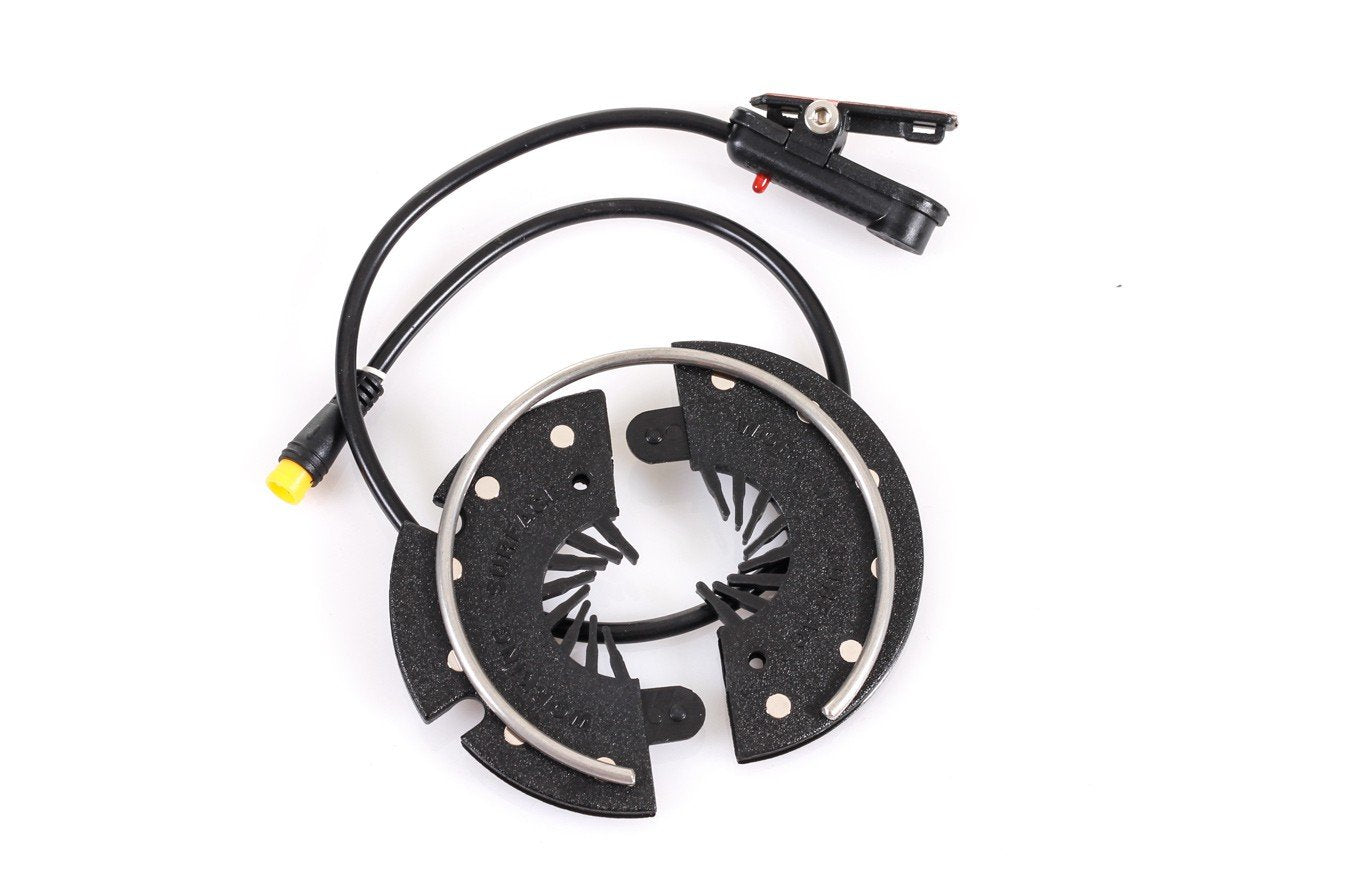

- RPAS

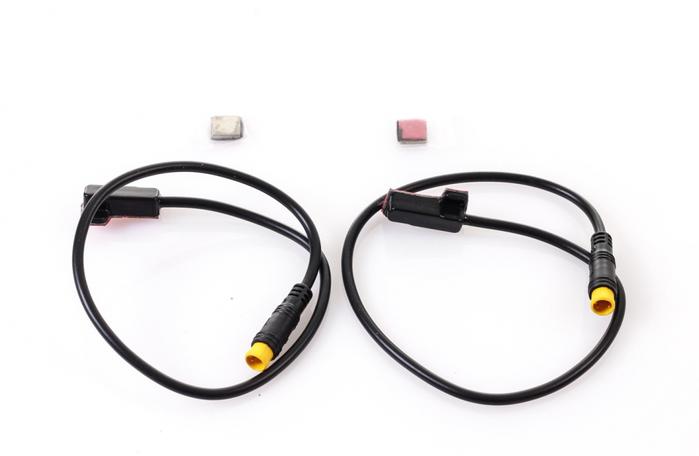

- E-Brake Sensors
- 4 to 1 Wiring Harness
- Motor Extension Cable
- Plastic Wiring Loom/Sleeve
- Cable Ties (10)
- "C" Washers (2)
Motor Fitment
We recommend measuring the distance between your front fork's dropouts and making you sure you have the required 100mm of space needed for the Dillenger hub. For full fitment requirements see Will This Kit Fit My Bike?
Battery Fitment
The NT Battery case typically installs onto your drink bottle mounts along the top surface of your down tube. Its measurements are: 36cm long x 8.2cm wide x 12.5cm high.
Will this battery fit your bike? Find out here.
If your frame is too small, there are other options for battery installation including rear rack installation using rear rack such as this one here.
